ALGE TED WIRELESS SYSTEM

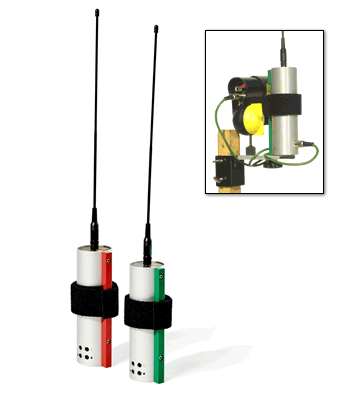

The TX/RX TED 400 wireless system. Currently in use for Skiing, MTB, Snowmobile Hillclimb, Track and Field, and Equestrian Jumping applications.
OVERVIEW
The Alge TED wireless system is a proven, highly-reliable pulse & data system. We have tested this system to distances in excess of 5 miles! Ideal for temporary installations or where hardwire is impossible to install. Perfect for skiing, showjumping, etc etc.
DESCRIPTION
  • Pulse-type data transmission ensures that all your information arrives "in one piece"! Each Start or Stop pulse from the timing source (gate, photocell, etc) is sent as a complete data packet, not just as an updated packet like other less-sophisticated systems. This feature virtually guarantees perfect performance
  • Sends simple timing impulses as well as data (scoreboards etc)
  • Use for dual starts of finishes with simple Din Plug "Y" cable custom made for your application.
  • Output power: TX400- 400mW
  • Compatible with any half-duplex device using RS232 protocol
  • Built-in protection against false data
  • Built-in signal optimizer allows the user to tune the system to the optimum frequency using its unique LED and tone-based signal tuner.
  • Long-range TED-TX 400 works up to approx. 5 km (3 miles). We have successfully tested these systems to far greater distances.
  • Up to 16 signal addresses can be used, so up to 16 different TED systems can be used in the same area with no cross-interference (i.e. 1 set for Start-Finish, another set for Interval times, another set for display boards, etc)
  • Runs on standard AA batteries
  • Ultra-rugged tubular aluminum construction
  • Comes with wide velcro strap to attach to almost anything, also features standard-thread tripod mount
ACCESSORIES & ADD-ONS
The TED is compatible with the following products sold by PST:
  • RX-C10 10-channel expansion adapter
  • PST photocell bracket
  • Dual "Y" cable for starts or finishes , Custom made by PST
  • RX receiver to Finish Lynx "C Box" , Custom made by PST
  • Manfrotto tripod system
MODELS AVAILABLE
The TED system is available as standard model TX400, rated to 3 miles.
COMPATIBILITY STATEMENT
This product is fully compatible with all existing Alge & PST products, including all PST displays.
ADDITIONAL RESOURCES
ADDITIONAL DOCUMENTATION (PDF)
TED User's Manual 1.1Mb
